Rigaku XtaLAB Synergy-S Single Crystal Diffractometer

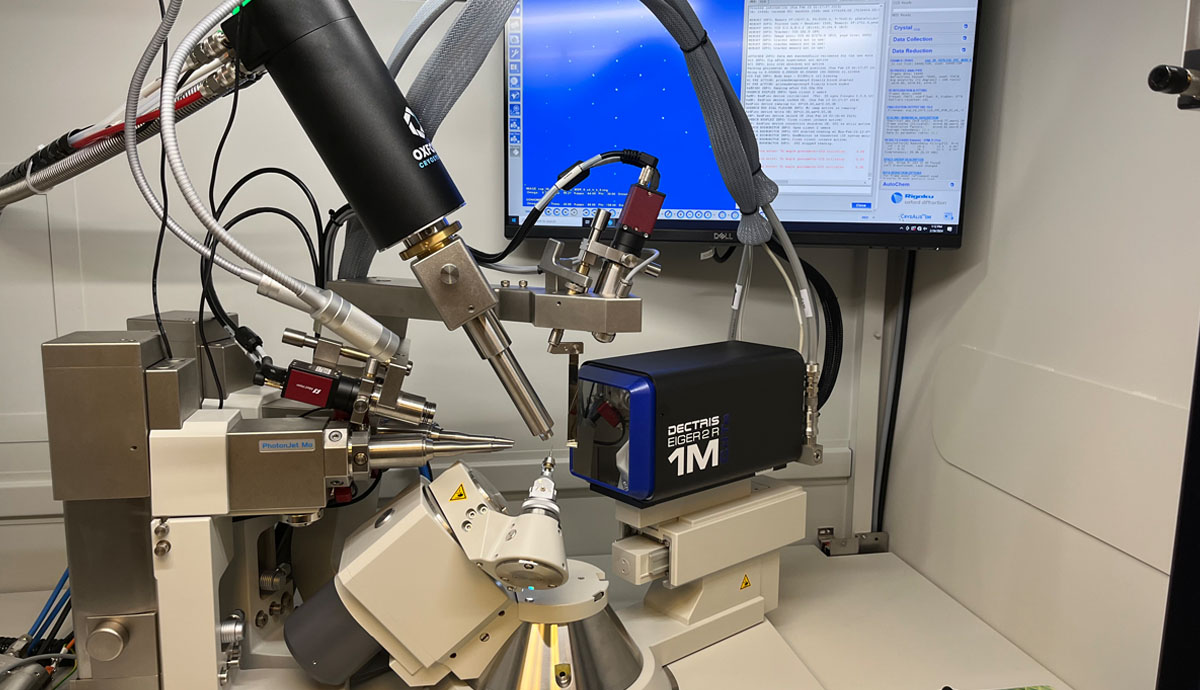

The Rigaku XtaLAB Synergy-S Single Crystal Diffractometer machinery — The Rigaku XtaLAB Synergy-S Single Crystal Diffractometer

Features

Structural analysis of single crystals (>5 μm)
4-circle kappa goniometer
Dual micro-focus X-ray sources (PhotonJet-S Mo and Ag)
Dectris Eiger2 R 1M CdTe hybrid photon counting detector
Oxford Cryostream 1000 (80-400 K) and FMB Oxford Hot gas blower (300-1273 K)
High pressure equipment for diamond anvil cell experiments up to 9 GPa (DACs, spark eroder, Optiprexx photoluminence system)

Diamond anvil cell for high pressure experiments

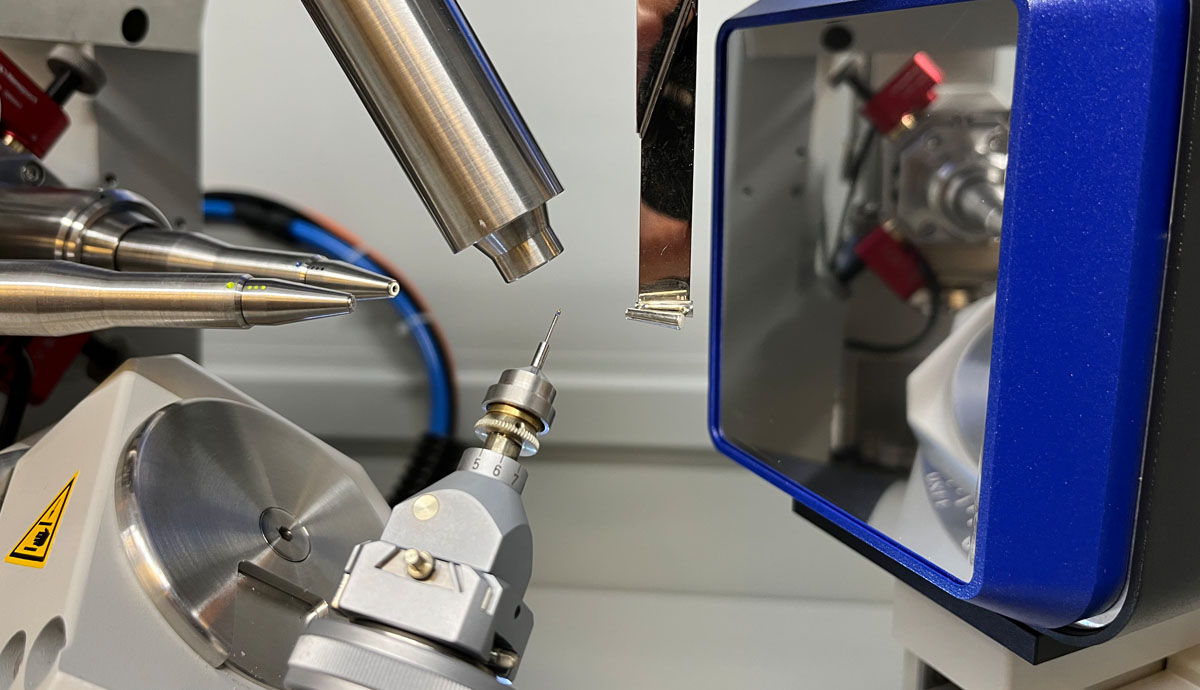

Close up of the Rigaku XtaLAB Synergy-S Single Crystal Diffractometer

Museum lead

Dr Jens Najorka
